TRACKWALL® By Hormigon – Brick Slip Installation System.

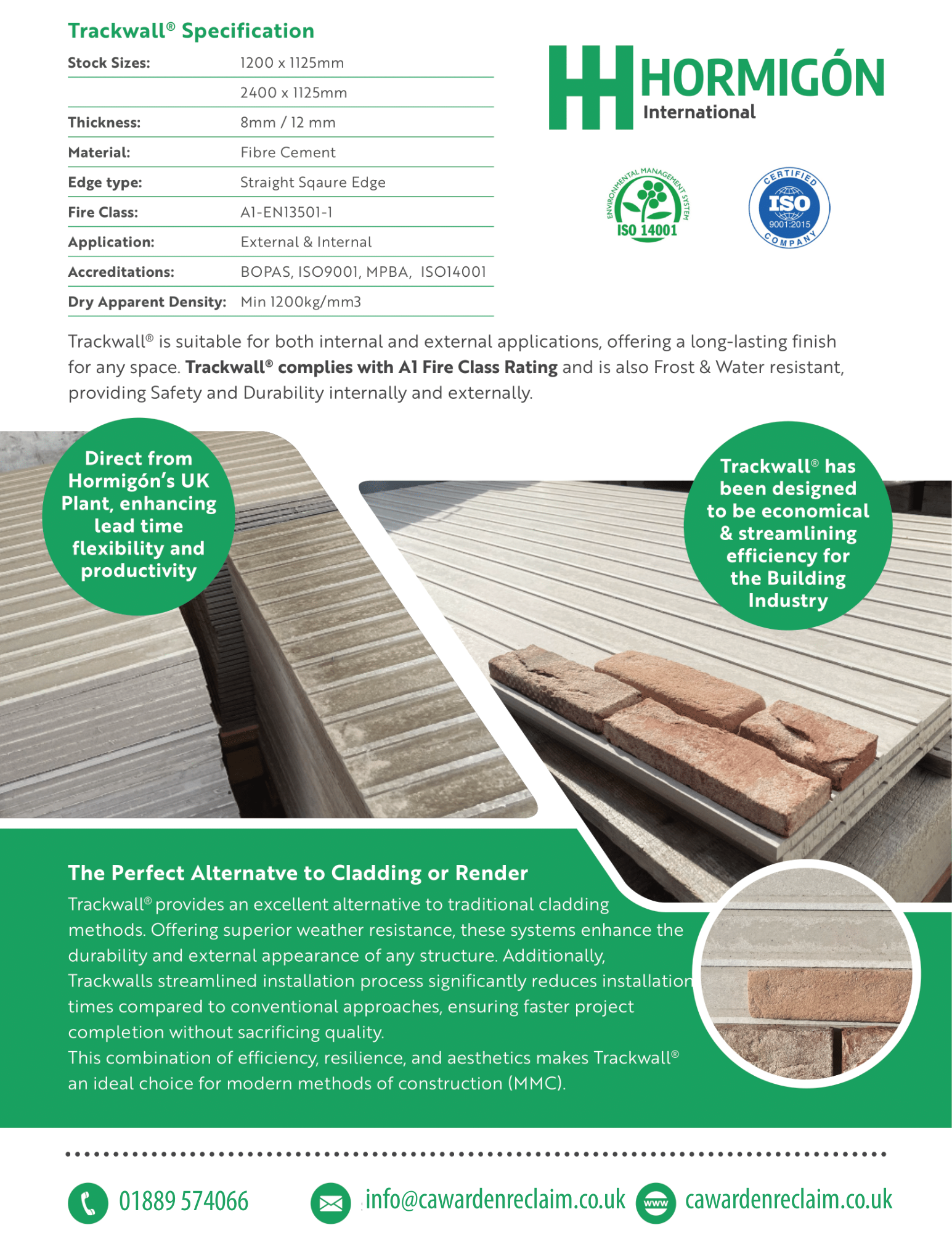

Technical Specification -

• Material: Fibre Cement
• Edge type: Straight Square Edge
• Fire Class: A1-EN13501-1
• Application: External & Internal
• Accreditations: BOPAS, ISO9001, MPBA, ISO14001
• Dry Apparent Density: Min 1200kg/mm3

Dimensions:

• Available groove sizes - 68mm, 79mm
• Board sizes - 1190mm x 1125mm, 2496mm x 1125mm
• Thickness - 8mm/12mm

Both board sizes available with either groove size.

Have a slip smaller than 65mm, or bigger than 76mm? Boards with custom groove sizes can be manufactured to order. Please contact us for a quotation and lead time.

TRACKWALL ® By Hormigon

Is a Trackwall system to simplify brick slip installation.

Manufactured from A1 Fire Rated Fibre Cement Board. Adaptable product to accommodate any Brick Slip requirements.

Ideal For Bespoke Projects

TRACKWALL ® is designed for on and off site builders, offering unmatched flexibility for bespoke projects. Capability to manufacture to any grade design. Easily cut to any size or shape, these panels integrate seamlessly into modular designs, accommodating unique dimensions and layouts. Trackwall® ensures the perfect fit every time!

Build Times Reduced

The innovative design of Trackwall® streamlines construction for on and off site builders, enabling faster, efficient builds. Precision-cut panels fit seamlessly, reducing on-site adjustments, accelerating build times, and ensuring smooth completion. Achieve high-quality results without compromising durability, keeping you on schedule and delivering on time.

Direct from UK Manufacturer

We understand the demands of on and off site builders construction, so we offer flexible delivery options tailored to your needs. CAWARDEN ship Trackwall® directly from the UK manufacturer to your site. For bespoke projects needing custom cuts, we ensure quick turnaround with delivery, keeping your builds on schedule and running efficiently.

The Perfect Alternatve to Cladding or Render

Trackwall® provides an excellent alternative to traditional cladding methods. Offering superior weather resistance, these systems enhance the durability and external appearance of any structure. Additionally, Trackwalls streamlined installation process significantly reduces installation times compared to conventional approaches, ensuring faster project completion without sacrificing quality. This combination of efficiency, resilience, and aesthetics makes Trackwall® an ideal choice for modern methods of construction (MMC).

See more of our Brick Slip Accessories HERE

Fixing Instructions:

In general a galvanized 35mm Insulation washer and fixing every 300-400mm.

For Coastal properties – we would recommend Stainless steal fixings only due to Salt corrosion.

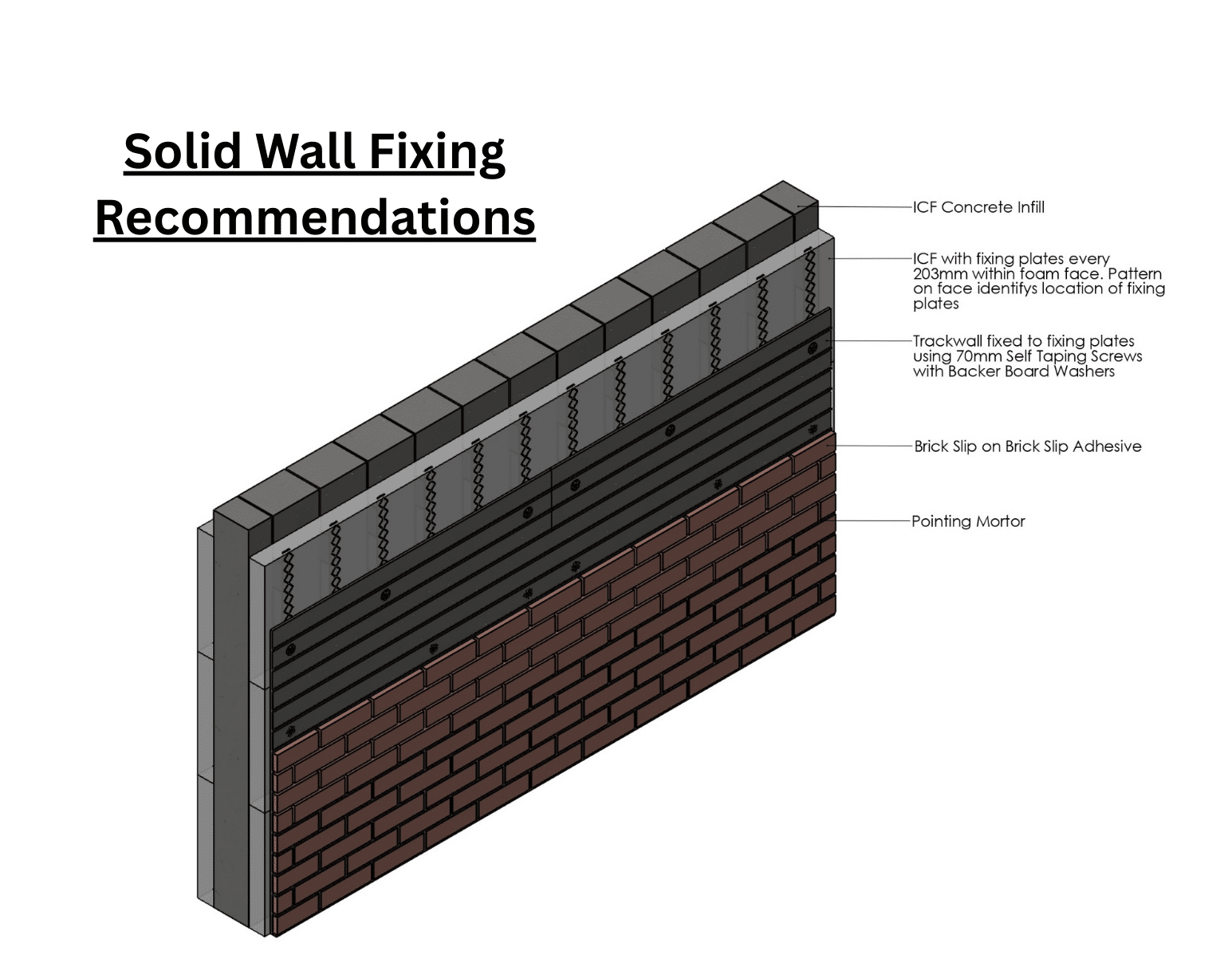

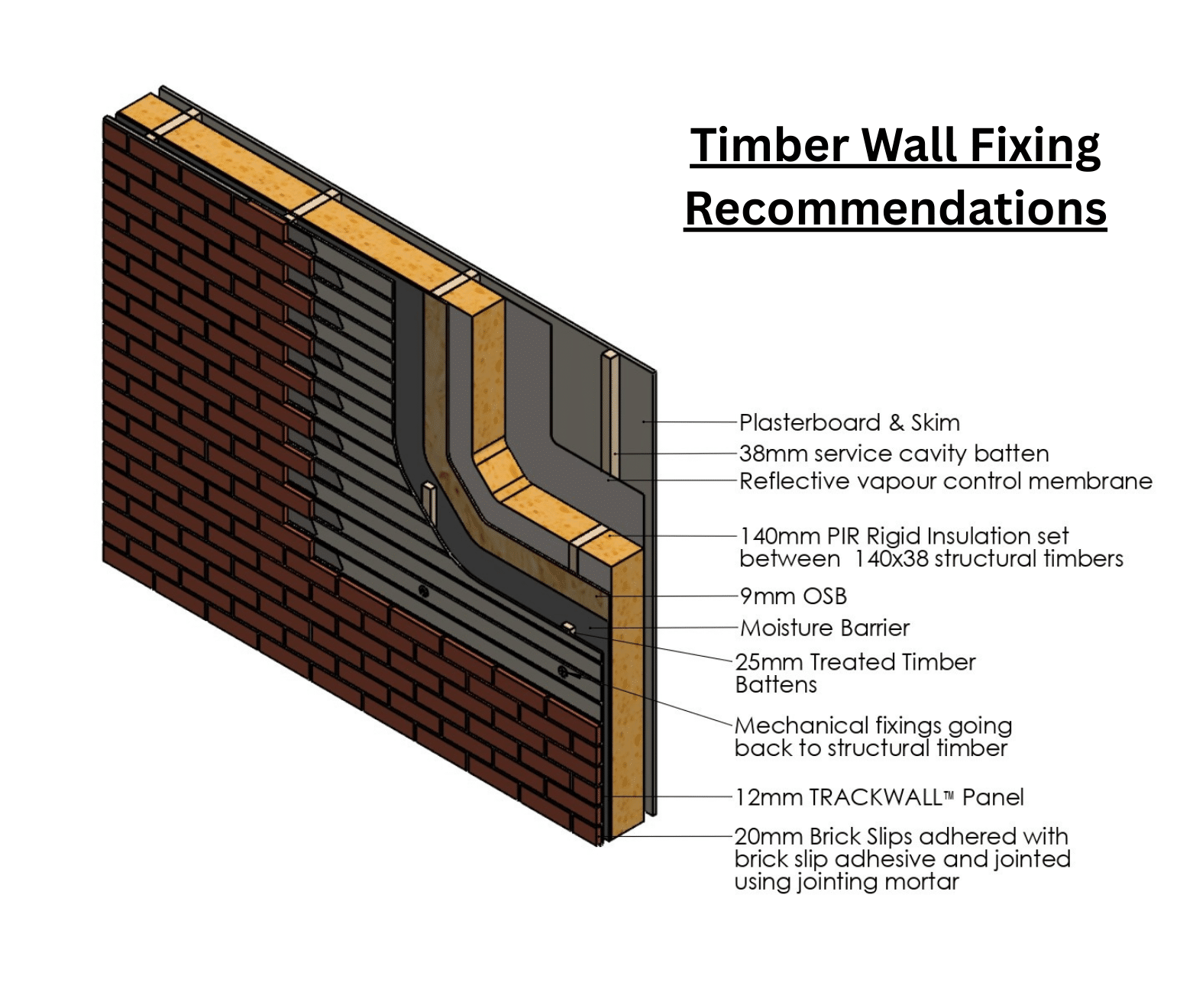

Please see technical drawings in images for more information.
